Stellite 6
Stellite 6

High quality stellite 6 with competitive price

Stellite 6 Features:

  1. Long service life on erosive wear resistance.
  2. High hardness excellent hot hardness.
  3. Impact Resistant: The toughness of the wrought Stellite 6B alloy yields Charpy impact test results quadruple(4X) that of cast Stellite 6.
  4.  High corrosion performance.
  5.  Available sizes: Diameter 6mm-200mm. Length up to2500mm. We can also make them as per your request.
  6.  According to customer feedback, the quality is similar to Kennametal.
Category:
Stellite 6 chemical Composition:
Co Cr W C Ni Si Fe Others
Stellite6B Base 28.00-32.00 3.50-5.50 0.90-1.40 3.00* 2.00* 3.00* Mn, Mo
Stellite 6 Base 27.00-31.00 3.00-6.00 0.90-1.40 3.00* 2.00* 3.00* Mn, Mo
Stellite 6 B mechanical Properties per AMS 5894:
Tensile
Strength (ksi)		 Yield
Strength (ksi)		 Elongation
in 2″,%		 Reduction
Area		 Hardness
HRC
Stellite 6B 130 (min) 70 (min) 5% (min) 7% (min) 33-43
Stellite 6 B Physical Properties:
Density Melting Point Thermal Conductivity
Imperial
(lb/in3)		 Metric
(kg/m3)		 Imperial
(ºF)		 Metric
(ºC)		 Watt-cm/sq-cm ºC
Stellite 6B 0.303 8387 2310-2470 1265-1354 0.147

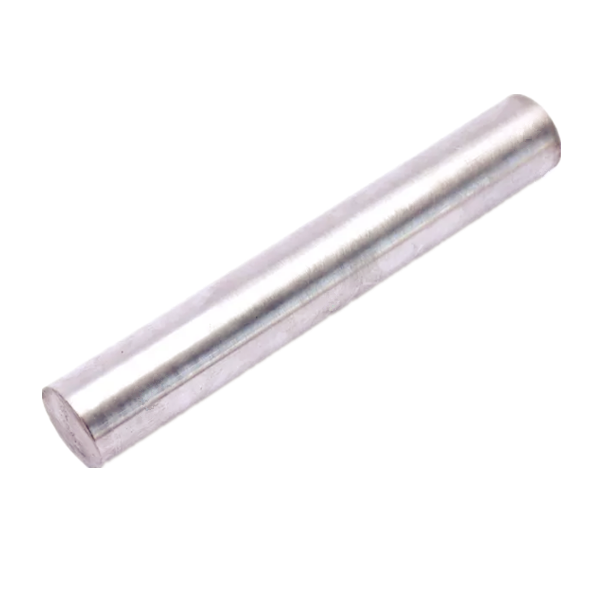

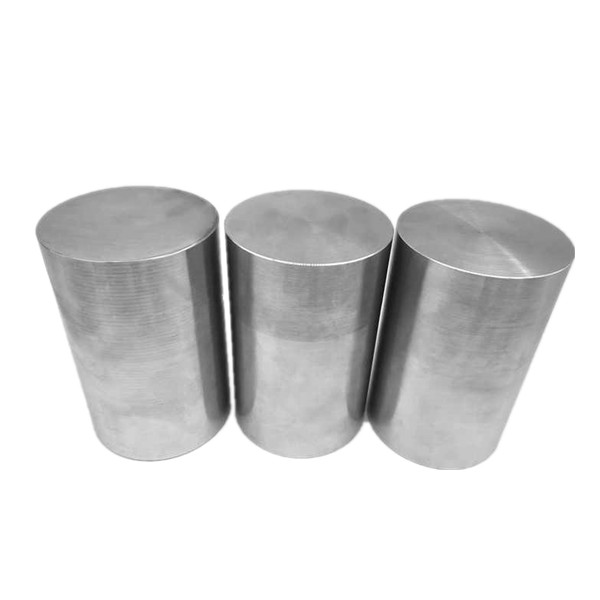

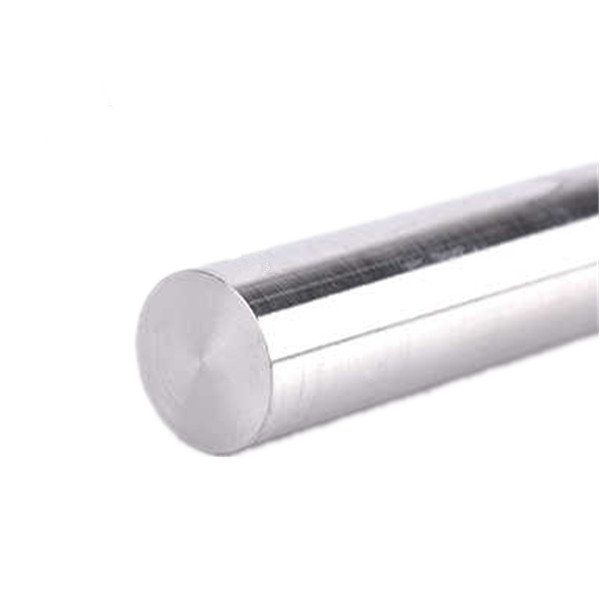

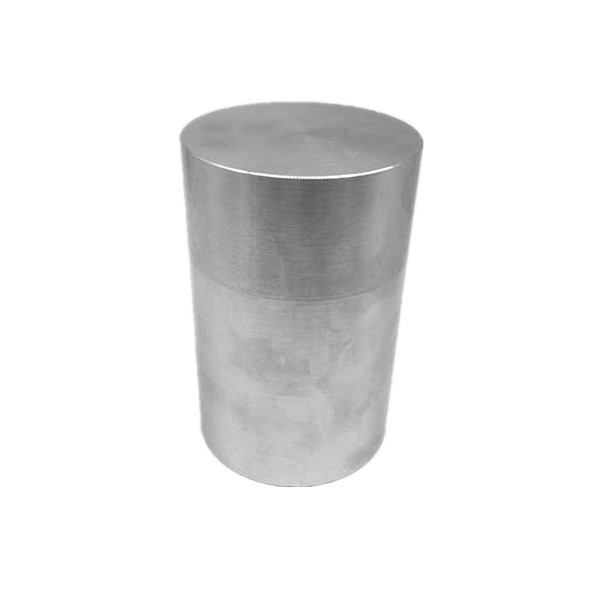

Stellite 6 details:

stellite 6

stellite 6

Please send us inquiries for quotations and free samples for testing:
