stepped carbide T-slot cutter rod blanks
High-end stepped carbide T-slot cutter rod blanks manufacturers - Image 2

High-end stepped carbide T-slot cutter rod blanks manufacturers

Stepped tungsten carbide T-slot cutter rod blanks:

Diameter from 6 mm to 200 mm.

Thickness from 1 mm to 100mm.

Length from 10 mm to 500 mm.

Accepting customized sizes.

Tolerance: h5 and h6 or sintered.

  1. Raw material selection: High quality tungsten carbide powder is preferred. 100% virgin material.
  2. Imported German PVA sintering furnace. HIP sintering. Which can keep tungsten carbide rods in high density, High wear resistance, high-performance.
  3. Professional engineers and quality inspection teams ensure product process inspection and acceptance inspection to ensure stable product quality and prevent unqualified products from being shipped.
  4. More than 40 years of manufacturing experience.
  5. The stepped carbide T-slot cutter rod blanks performance and service life are close to 95-100% of Guhring, Boehlerit and Kennametal.
Category:
Stepped carbide T-slot cutter rod blanks grade:
     Grade       ISO Grade  WC
(%)		    Co
  (%)		 Grain Size
      (μm)		 Hardness
（HRA）		    Density
  （g/cm³）		     TRS
   （N/mm²）
BU06 K05-K10 94 6 0.5 94    14.75        3600
YG10X K20 – K30 90 10 0.8 91.5 14.35       3600
BT15 K20 – K30 90 10 0.7 92.2 14.35       3900
BT20 K20 – K30 90 10 0.6 92.3 14.4     4000
BT25 K30 – K40 88 12 0.6 92.5 14.1      4000
BT25UF K30 – K40 88 12 0.4 92.8 14.05     4200

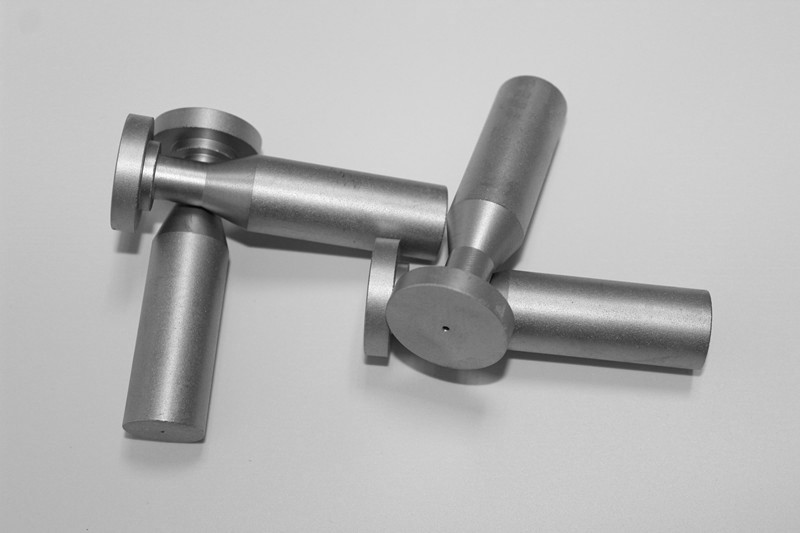

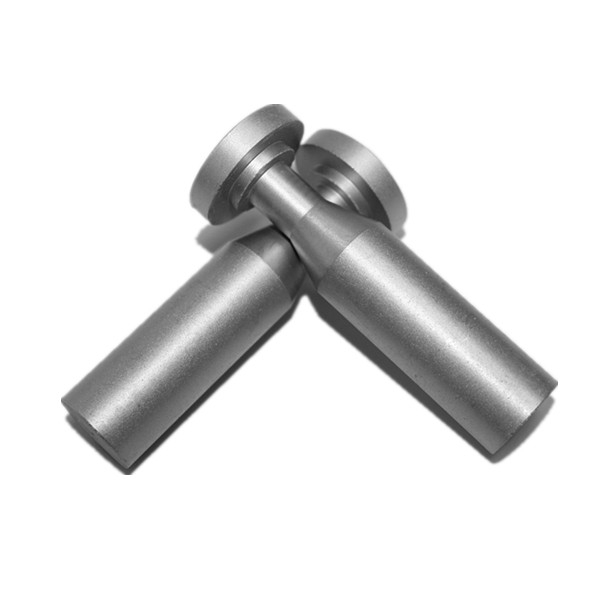

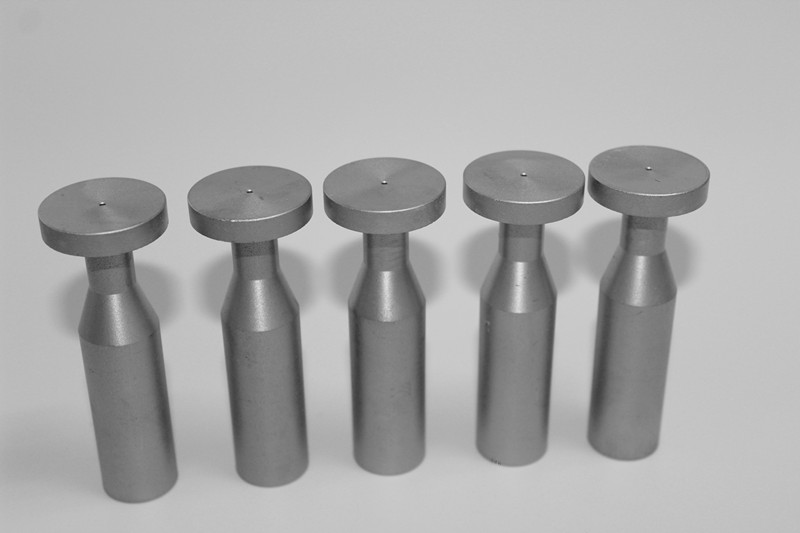

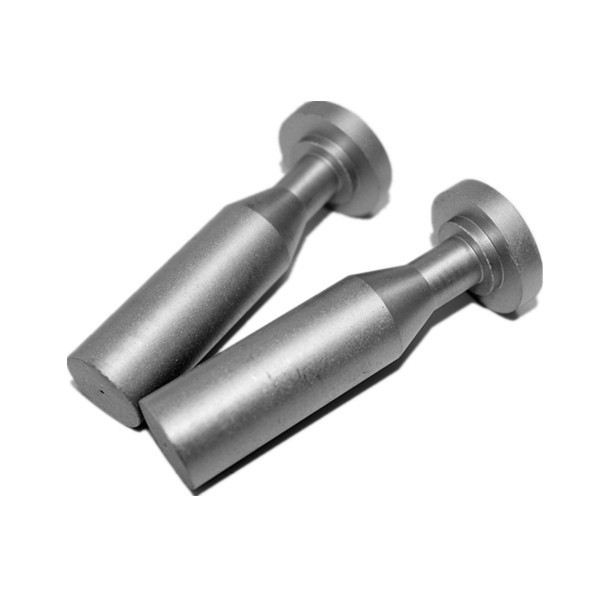

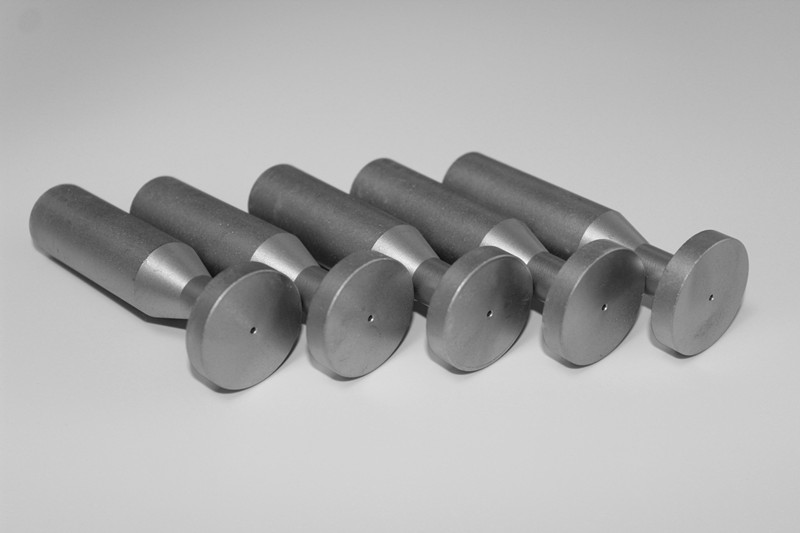

Stepped tungsten carbide T-slot cutter rod blanks details:
Tungsten carbide T-slot cutter blanks

Cemented carbide T-slot router bit blanks

Wolfram carbide T-slot router bit blanks

Please send us inquiries for quotations and free samples for testing:
